Micon Products Ltd. supplies high quality H thread drill steel and H thread carbide cross bits for the construction industry. Carbide cross bits are available in sizes as small as 1-3/8” (45mm) up to 3” (76mm). We keep inventory in stock in Vancouver. Standard shank size is 7/8”x4-1/4” for use on hand held rock drills. We can also supply 7/8”x3-1/4” and 1”x4-1/4” shank size. H thread carbide button bits are also available on request.
7/8" x 4-1/4" SHANK
| Part # Length Under Collar | Weight Lbs |
|---|---|
| 117-0213-1' | 3¼ |
| 117-0213-1'6" | 4¼ |
| 117-0213-2' | 5¼ |
| 117-0213-2'6" | 6½ |
| 117-0213-3' | 7½ |
| 117-0213-4' | 8½ |
| 117-0213-5' | 11½ |
| 117-0213-6' | 13¾ |
| 117-0213-8' | 17¾ |
| 117-0213-10' | 22 |
| 117-0213-12' | 26¼ |
| 117-0213-14' | 30¼ |
| 7/8" x 3-1/4" Shank Also Available Other Lengths Available On Request | |
1" x 4-1/4" SHANK
| Part # Length Under Collar | Weight Lbs |
|---|---|
| 127-0313-1' | 3¾ |
| 127-0313-1'6" | 5 |
| 127-0313-2' | 6 |
| 127-0313-2'6" | 7½ |
| 127-0313-3' | 10½ |
| 127-0313-4' | 11¼ |
| 127-0313-5' | 13¾ |
| 127-0313-6' | 16¼ |
| 127-0313-8' | 21¼ |
| 127-0313-10' | 26¼ |
| 127-0313-12' | 31¼ |
| 127-0313-14' | 36¼ |
| Other Lengths Available On Request | |

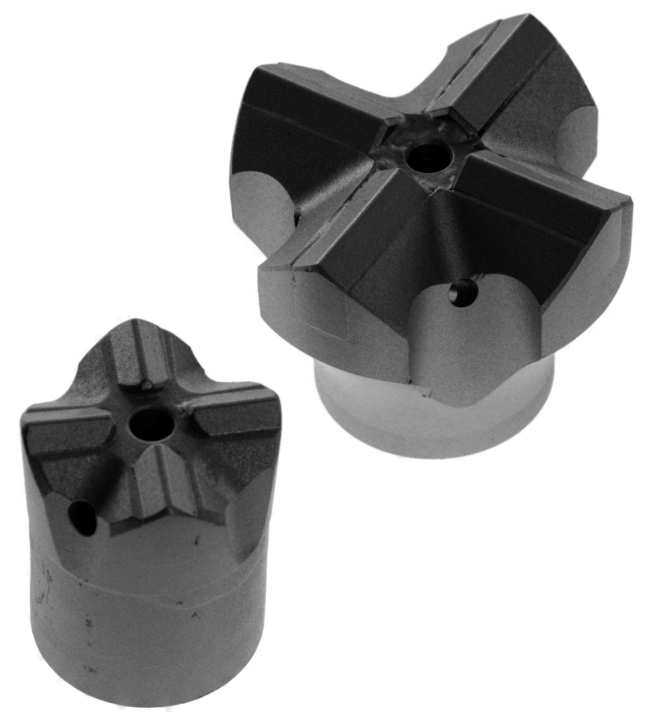

CARBIDE CROSS BIT 'H' THREAD
| Part # | Bit Size |
|---|---|
| H35MP | 1 3/8" |
| H38MP | 1½" |
| H41MP | 1 5/8" |
| H45MP | 1¾" |
| H48MP | 1 7/8" |
| H51MP | 2" |
| H57MP | 2¼" |
| H64MP | 2½" |
| H76MP | 3 " |
